Lamborghini Gallardo Page 6

Superleggera LP 570-4

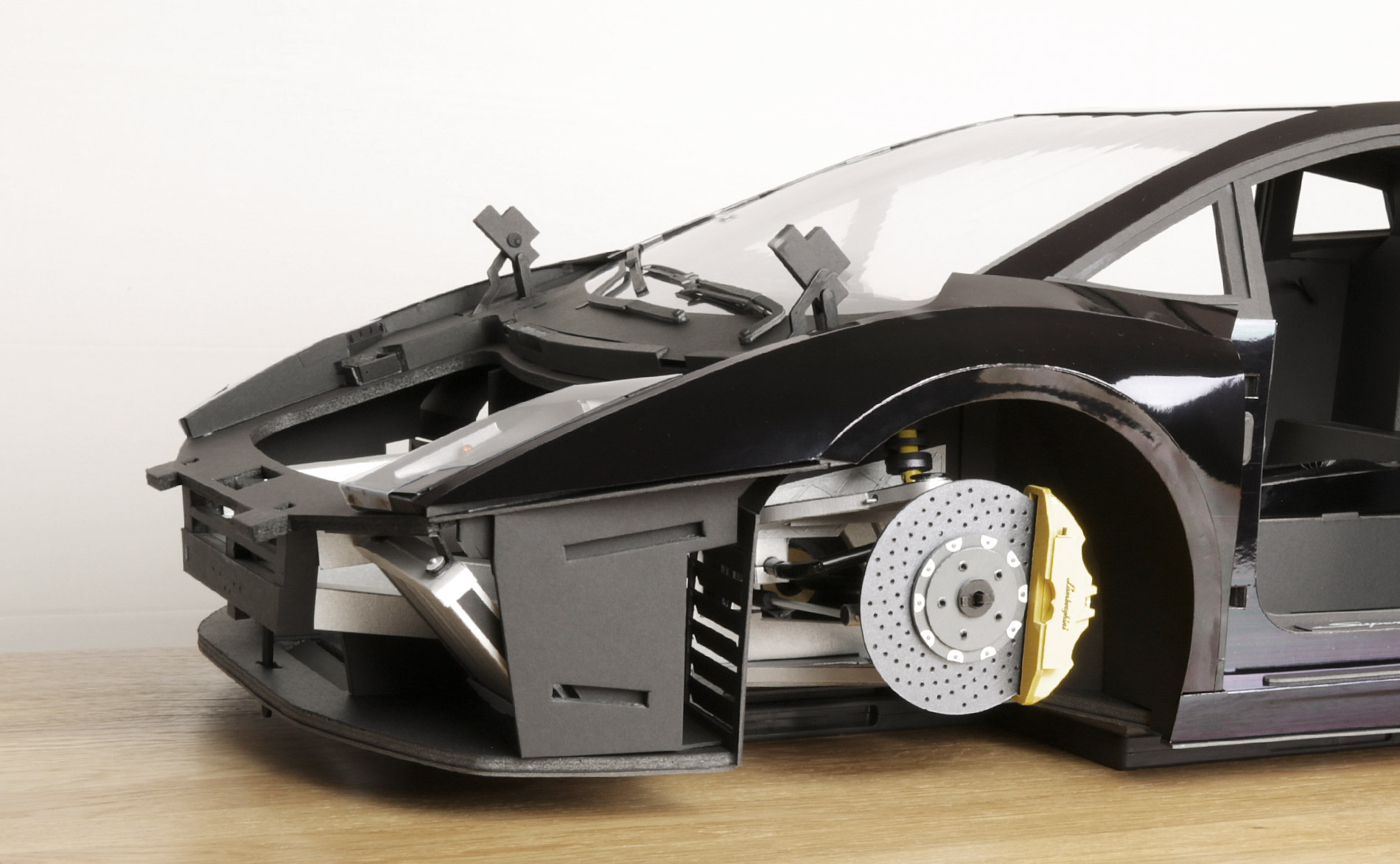

Front end almost finished. Just needs front trunk lid and bumper to be fitted.
  • ‣   Front end almost finished. Just needs front trunk lid and bumper to be fitted.
Front end almost finished.
  • ‣   Front end almost finished.

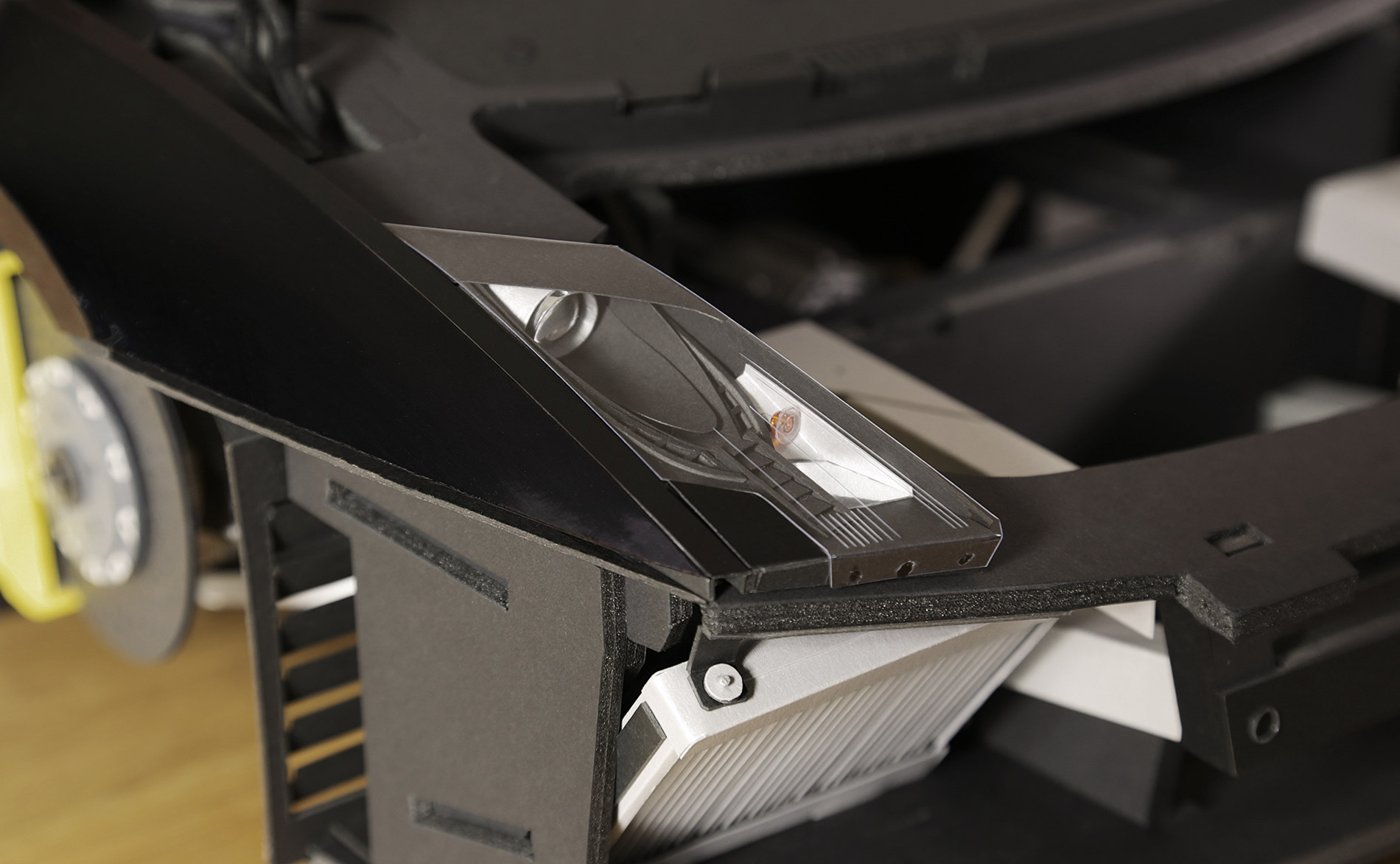

A finished headlight, fitted to the car.
  • ‣   A finished headlight, fitted to the car.

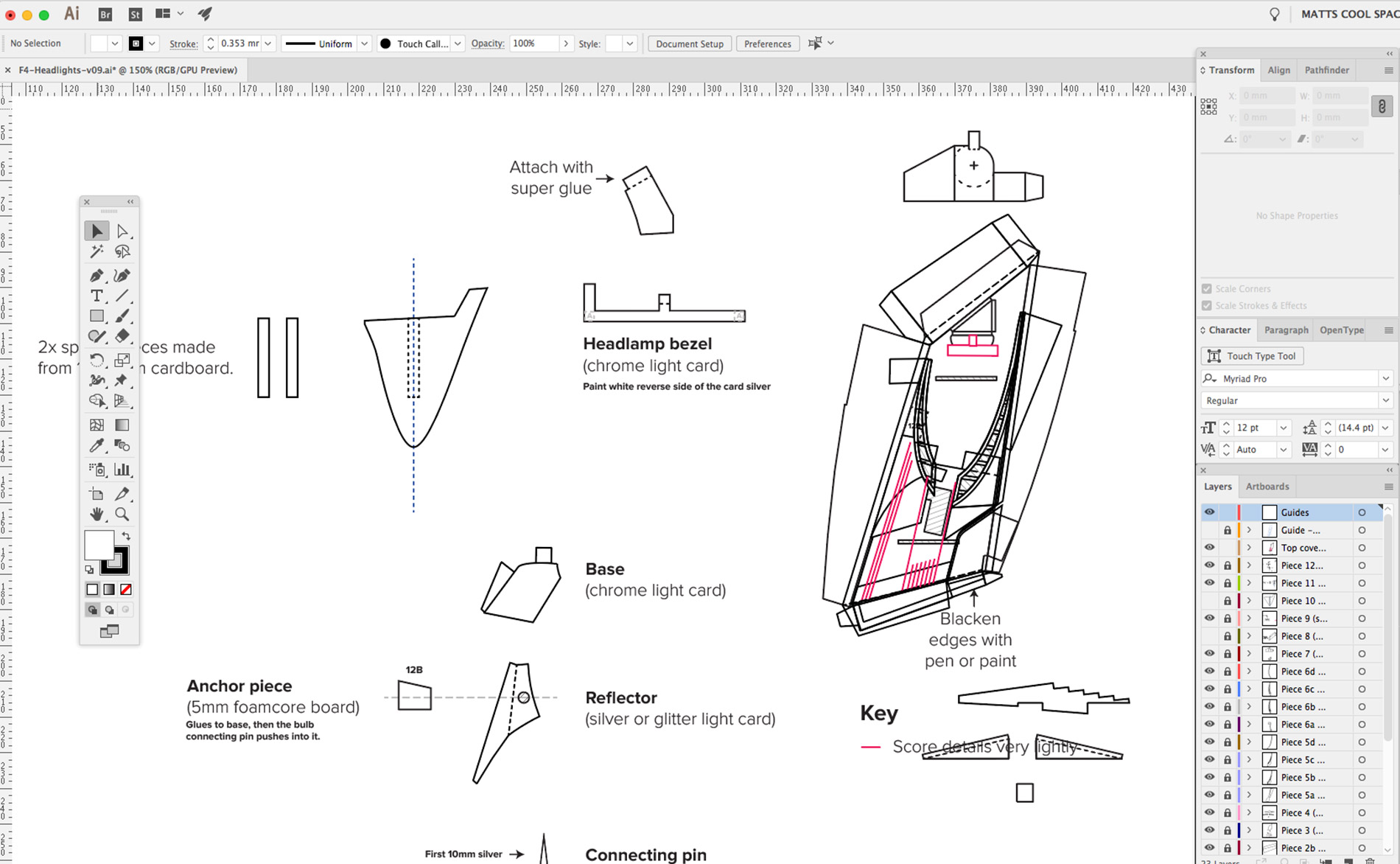

Detail from the headlight plans I created with Illustrator.
  • ‣   Detail from the headlight plans I created with Illustrator.

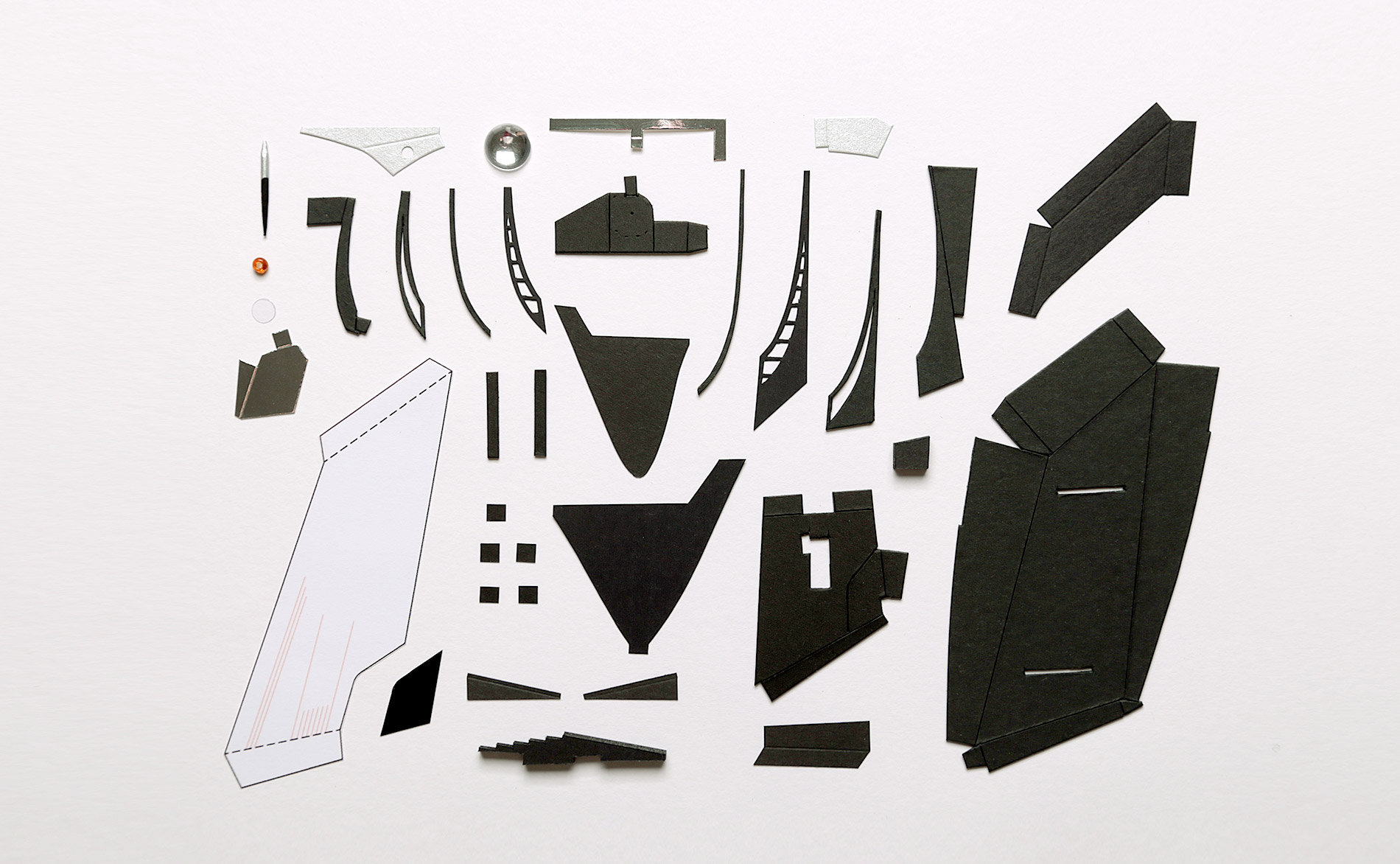

All the pieces that make up one headlight.
  • ‣   All the pieces that make up one headlight.

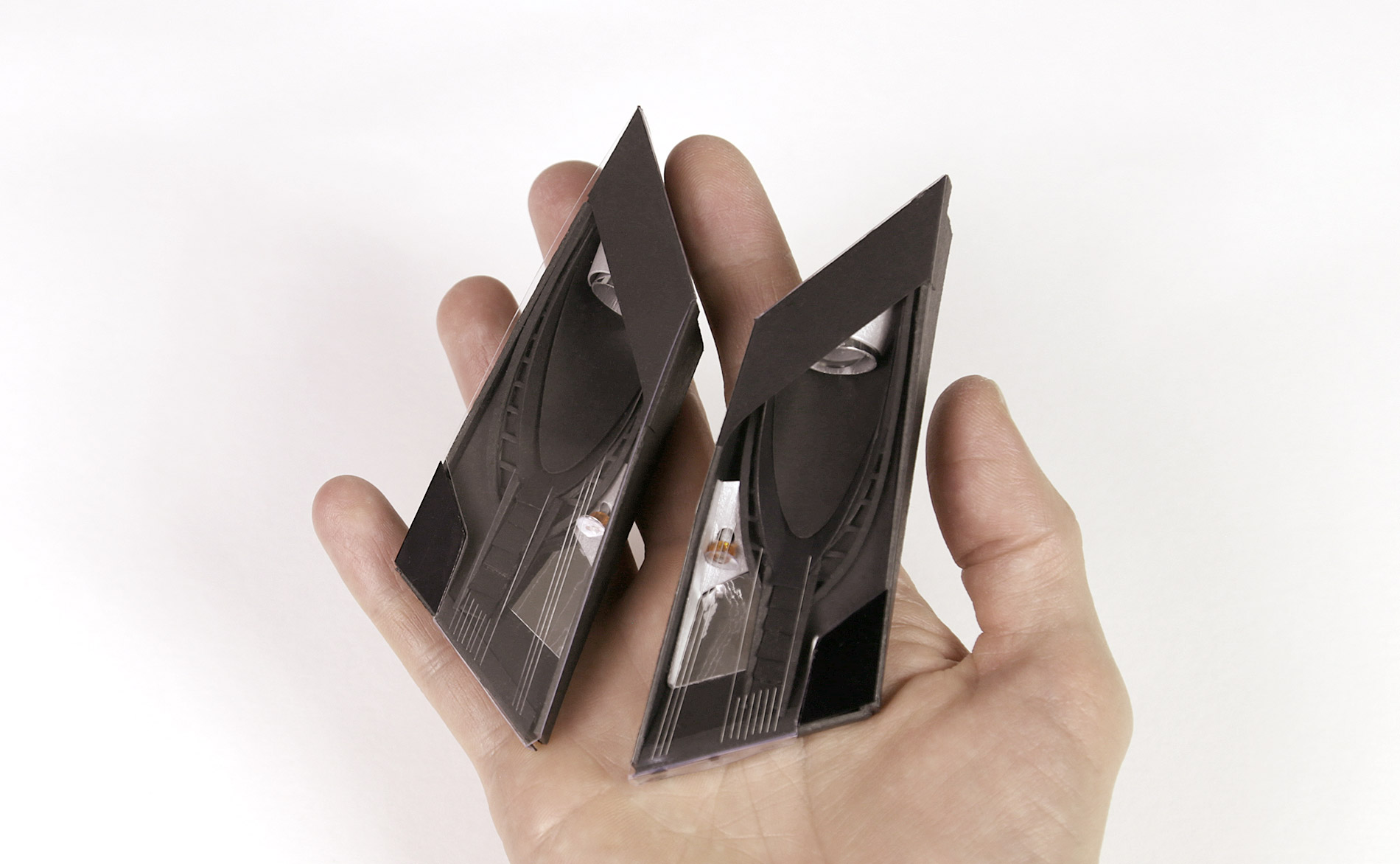

Two complete Gallardo headlights.
  • ‣   Two complete Gallardo headlights.

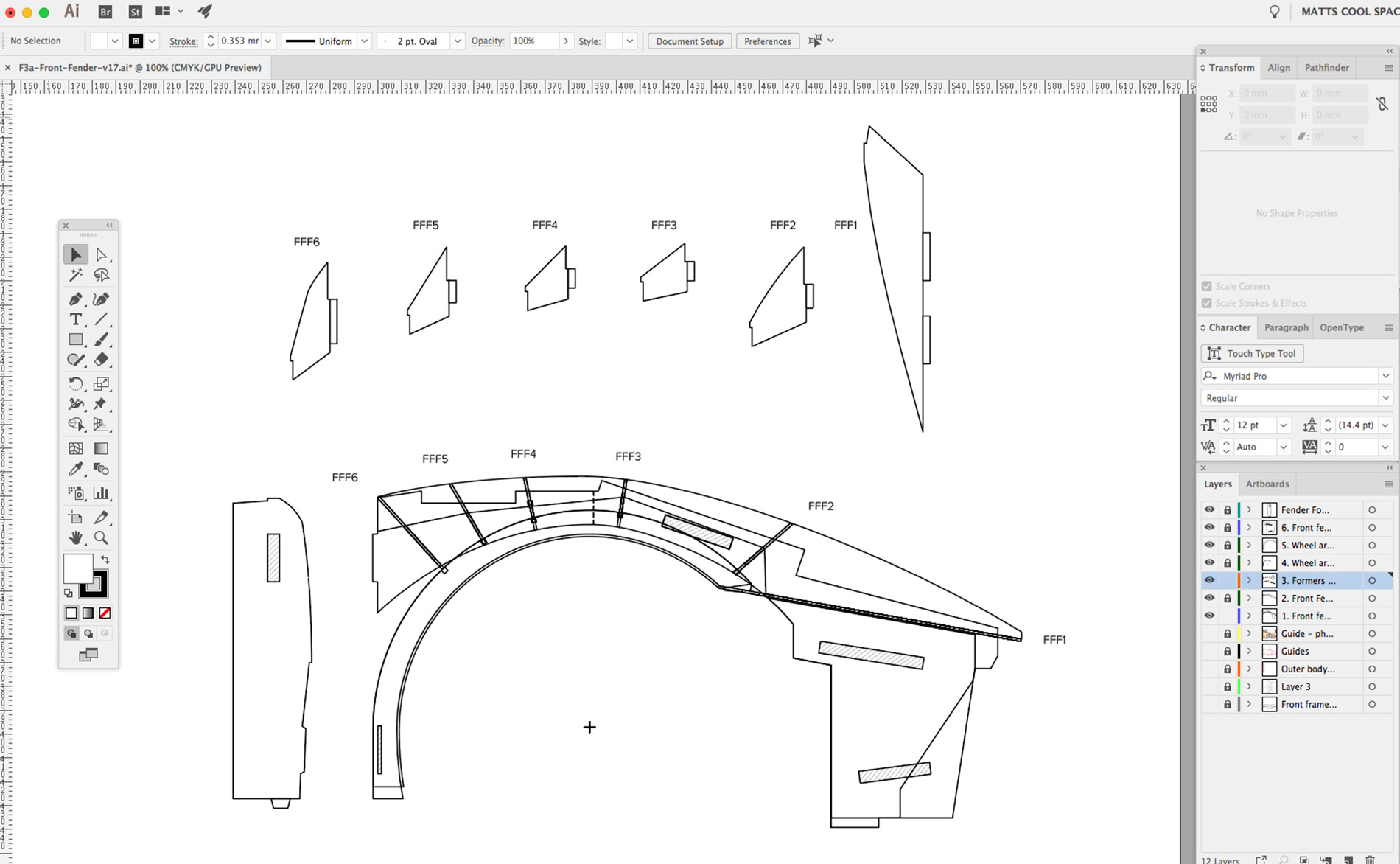

Plans for each fender part created in Adobe Illustrator.
  • ‣   Plans for each fender part created in Adobe Illustrator.

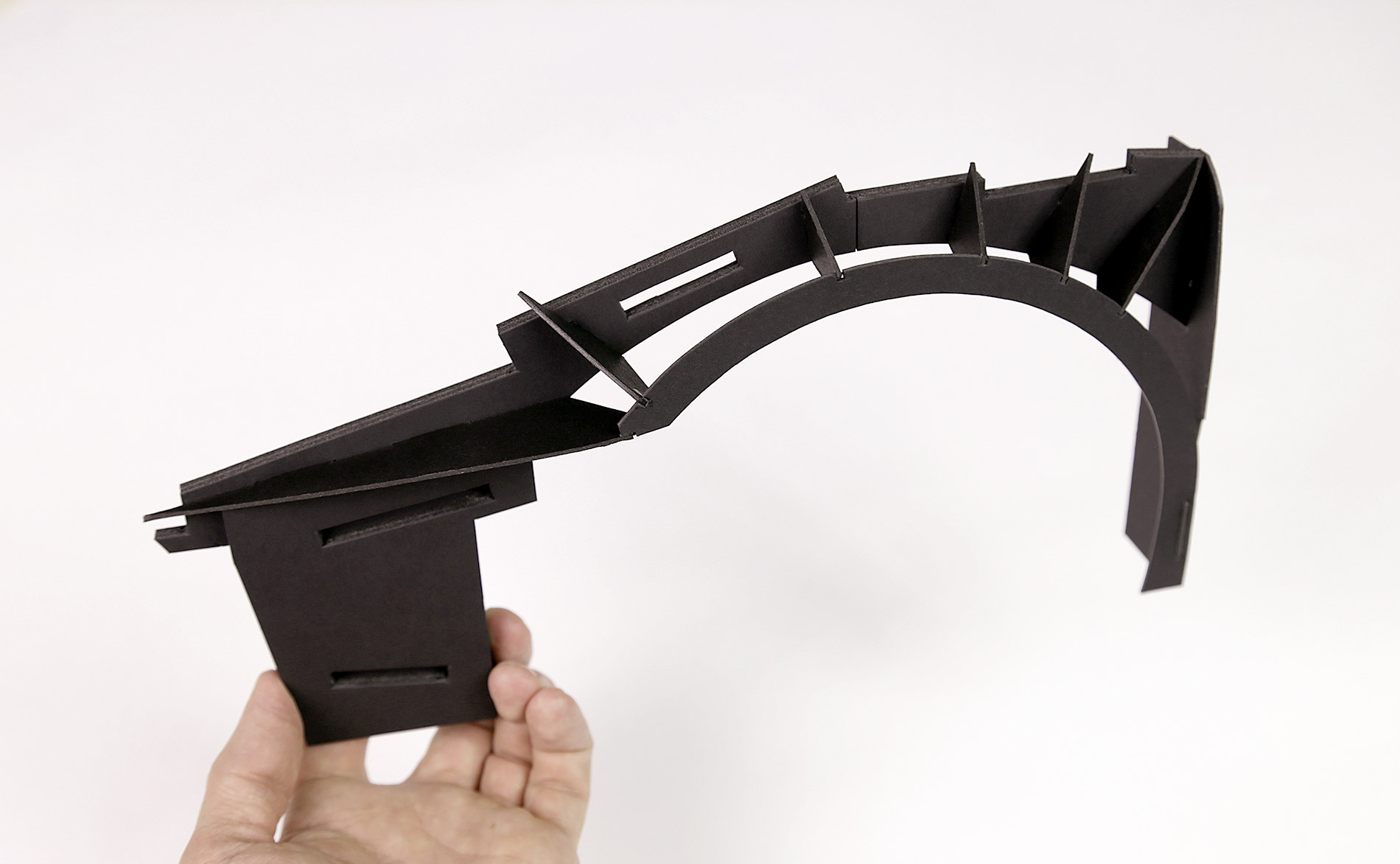

Main structure of a front fender, before I apply the outer body panels.
  • ‣   Main structure of a front fender, before I apply the outer body panels.

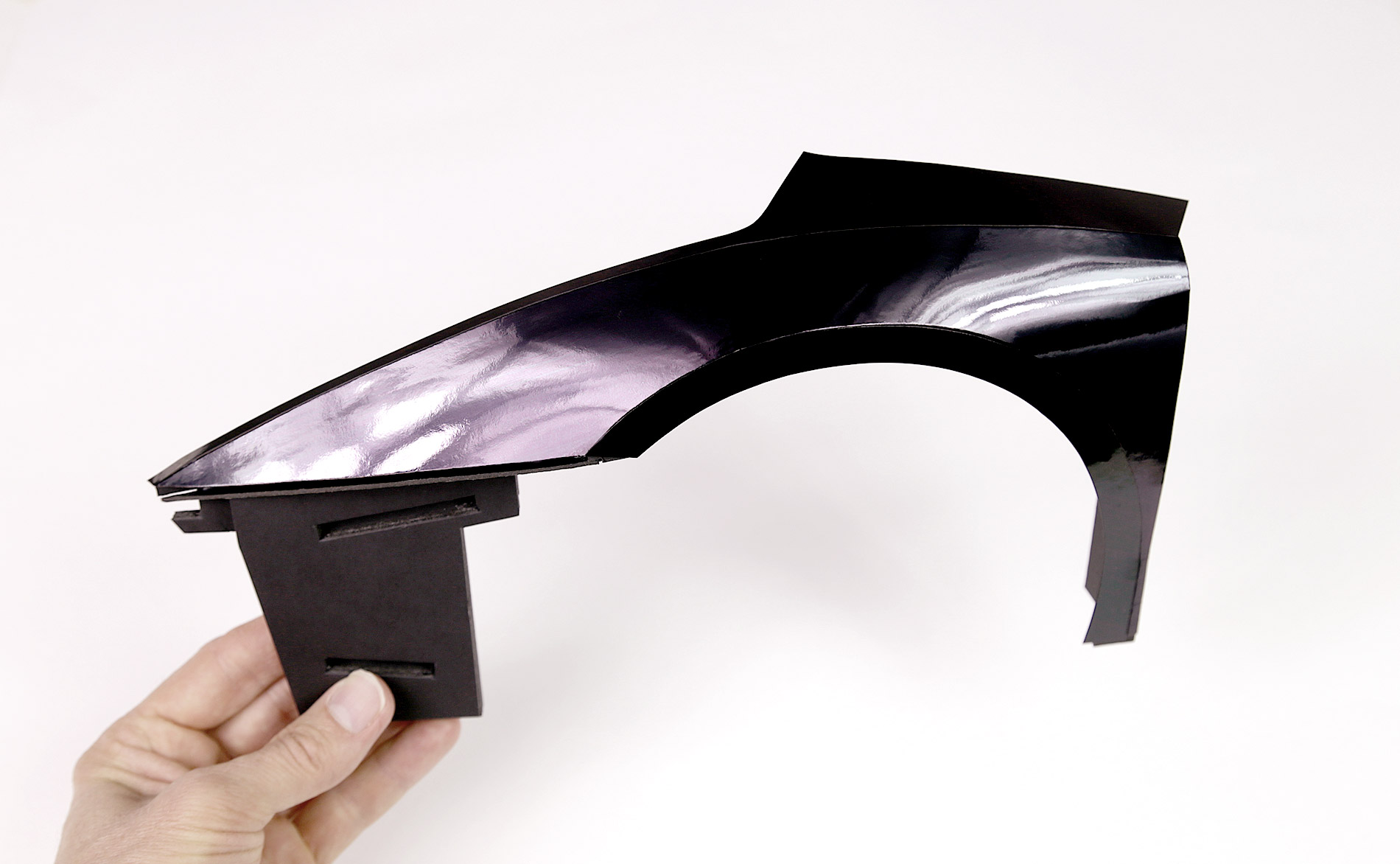

Complete driver side front fender.
  • ‣   Complete driver side front fender.

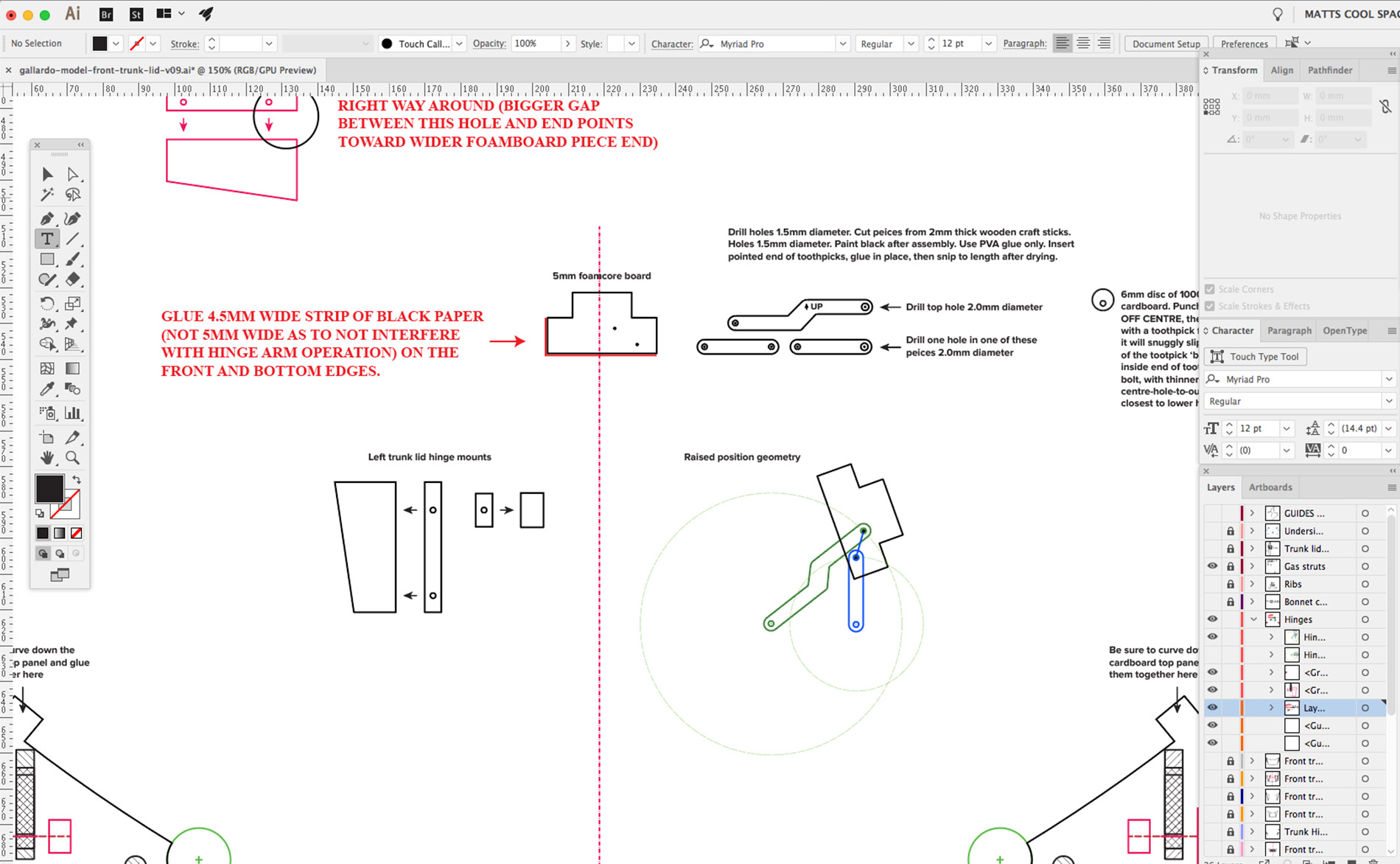

Working out part shapes, as well as hinge operation geometry, for the front trunk lid hinges.
  • ‣   Working out part shapes, as well as hinge operation geometry, for the front trunk lid hinges.

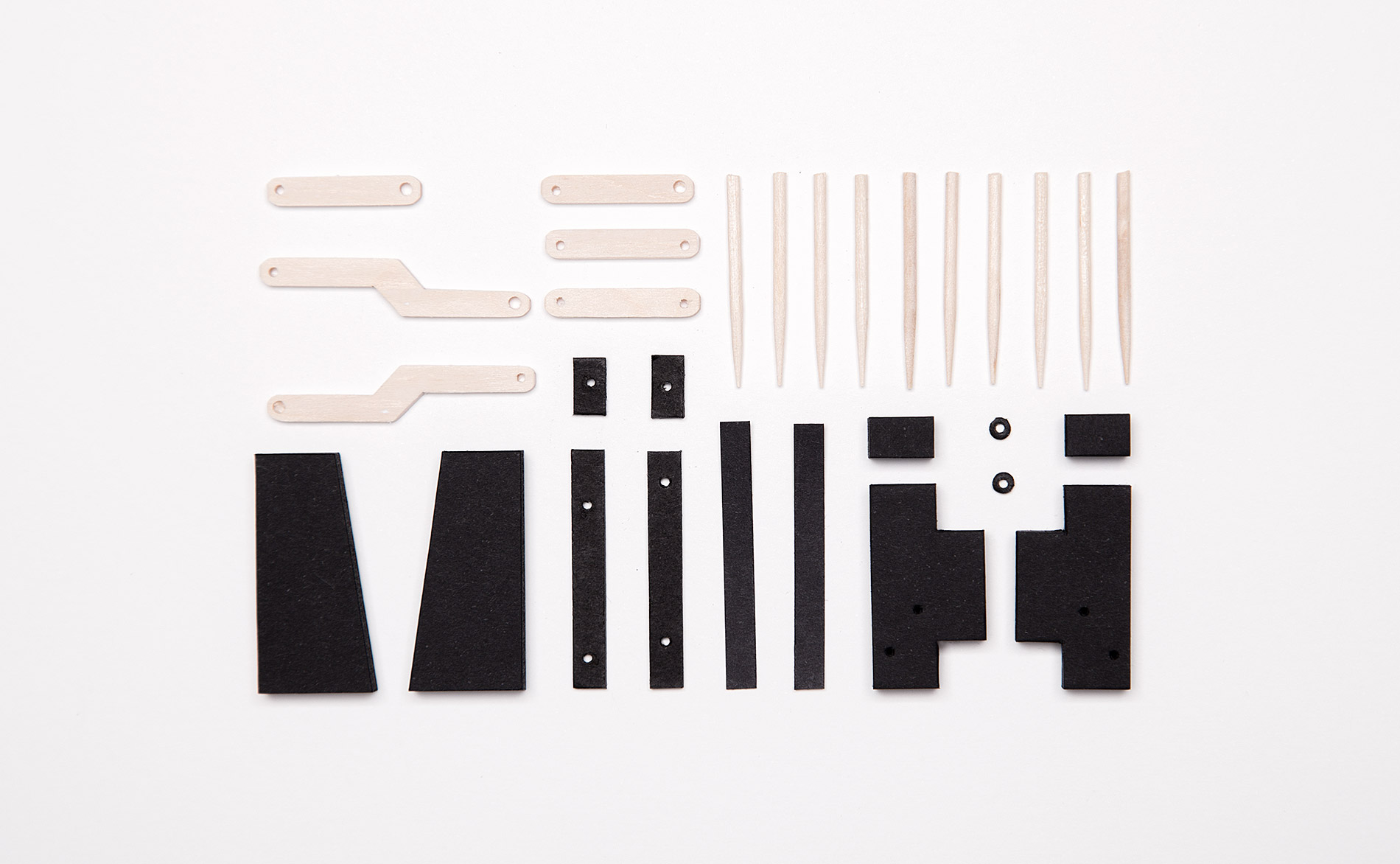

All pieces to make both front trunk lid hinges.
  • ‣   All pieces to make both front trunk lid hinges.

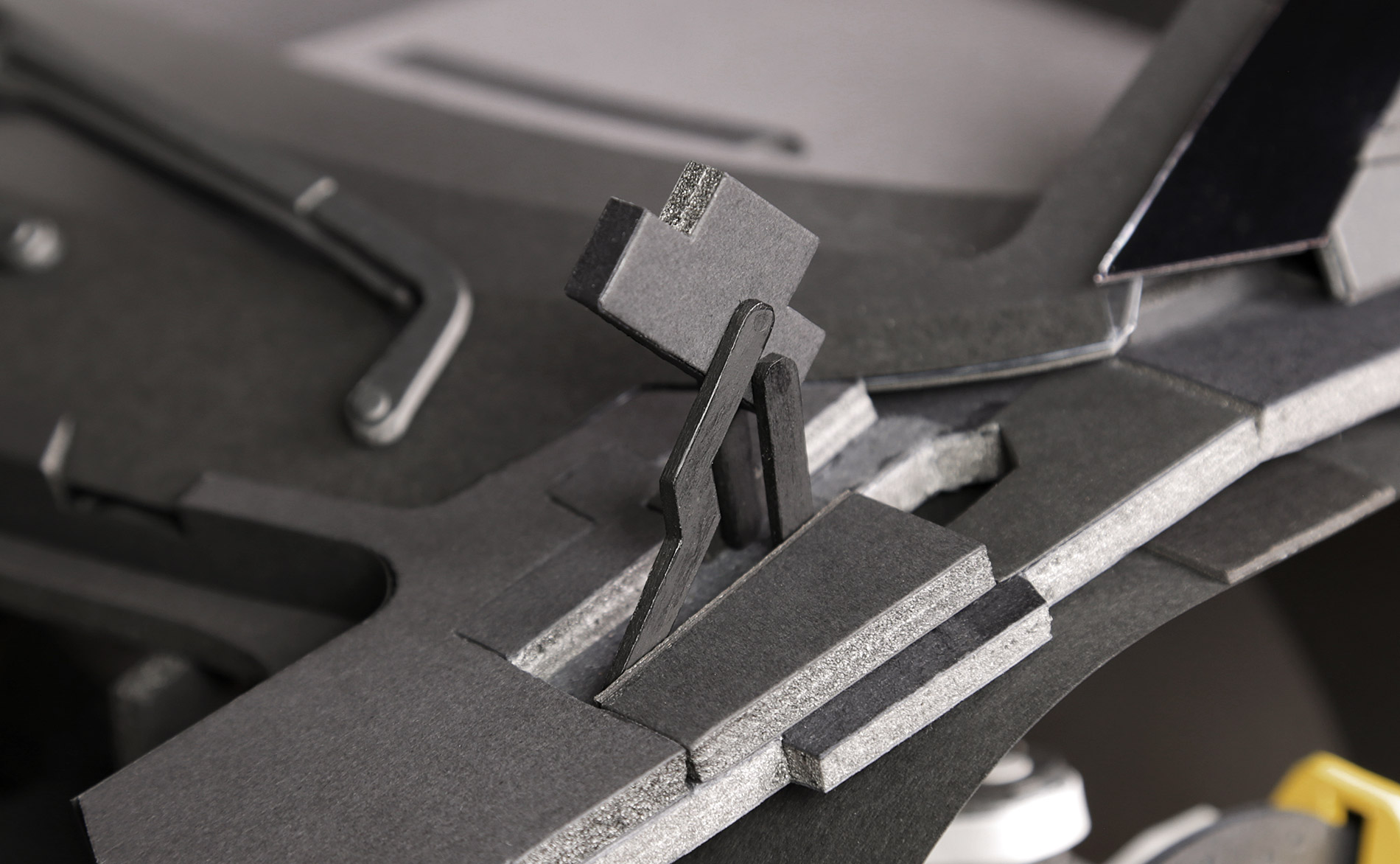

Driver side front trunk lid hinge fitted to the car.
  • ‣   Driver side front trunk lid hinge fitted to the car.

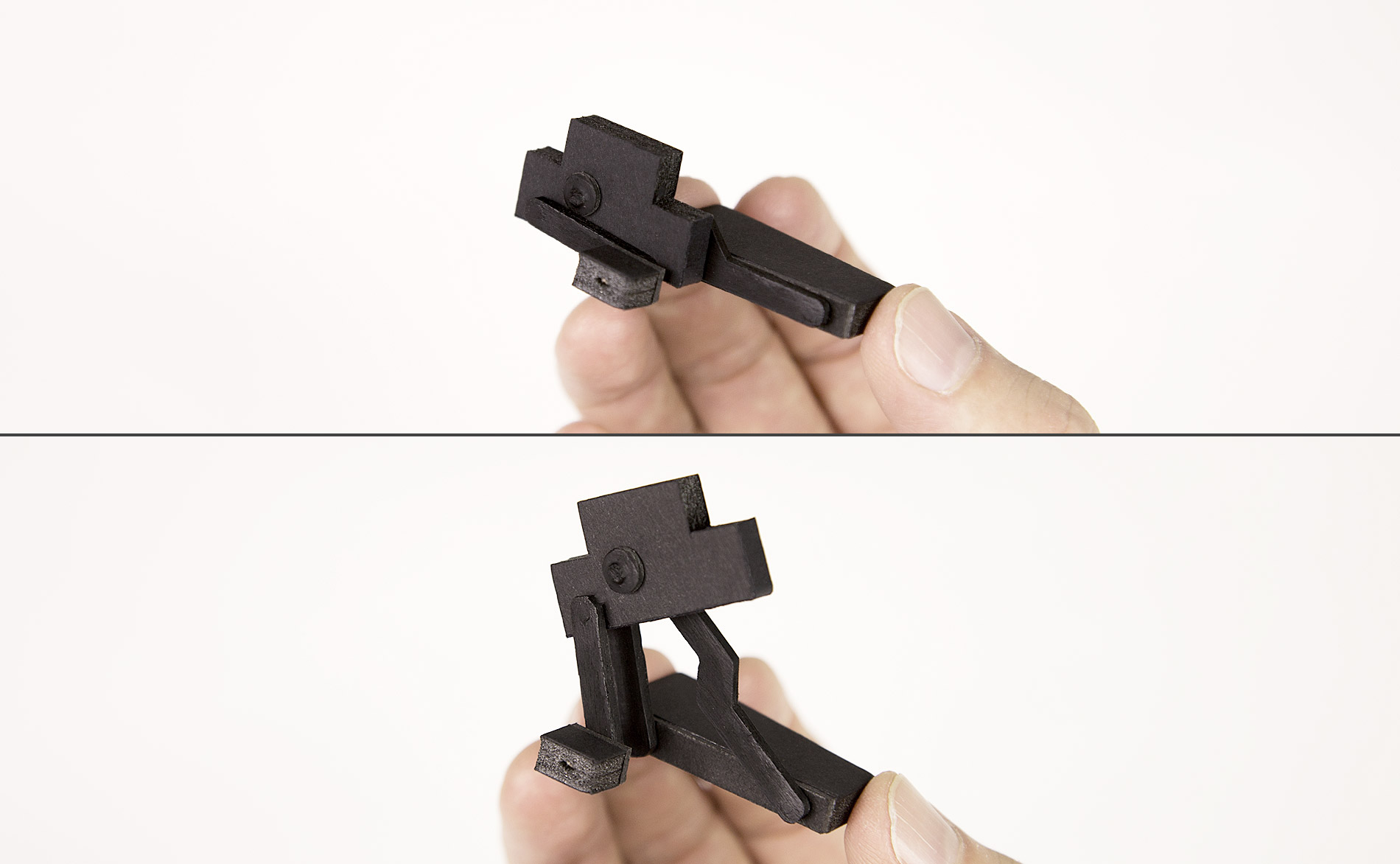

Hinge for the front trunk lid. Lowered (top) and raised (bottom).
  • ‣   Hinge for the front trunk lid. Lowered (top) and raised (bottom).

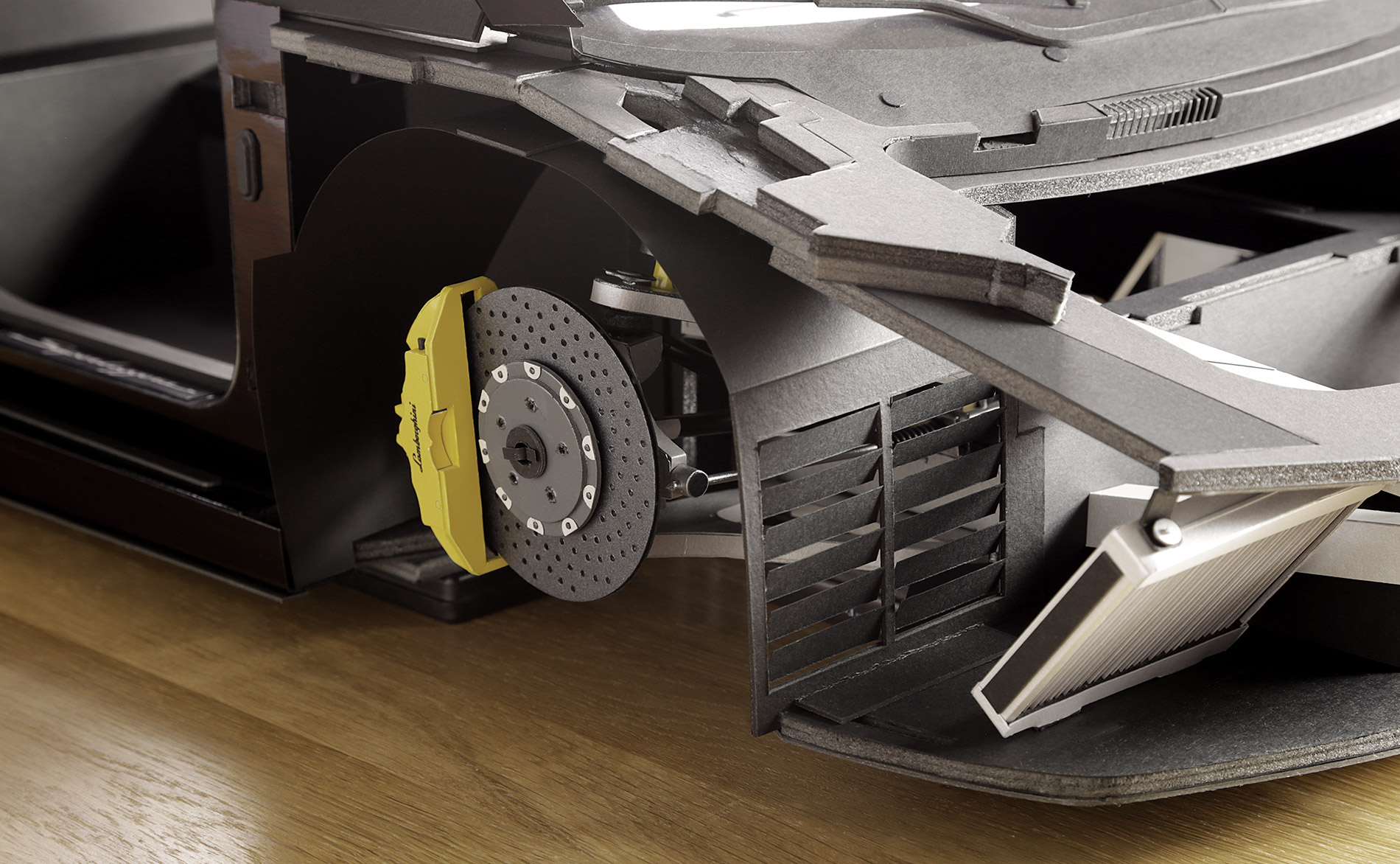

Front wheelhouse/fender liner fitted to the model.
  • ‣   Front wheelhouse/fender liner fitted to the model.

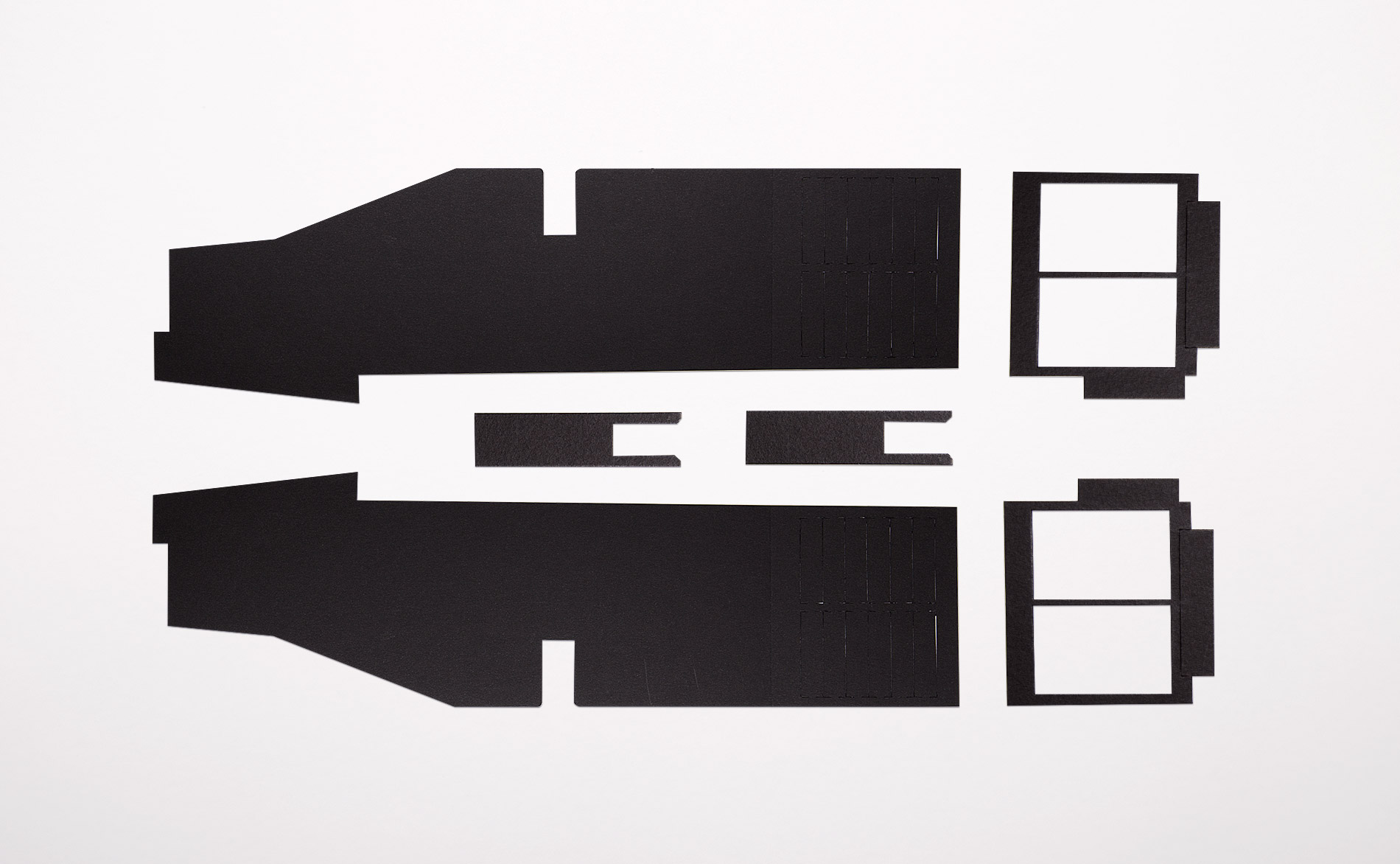

Pieces for the two front wheelhouses/fender liners.
  • ‣   Pieces for the two front wheelhouses/fender liners.

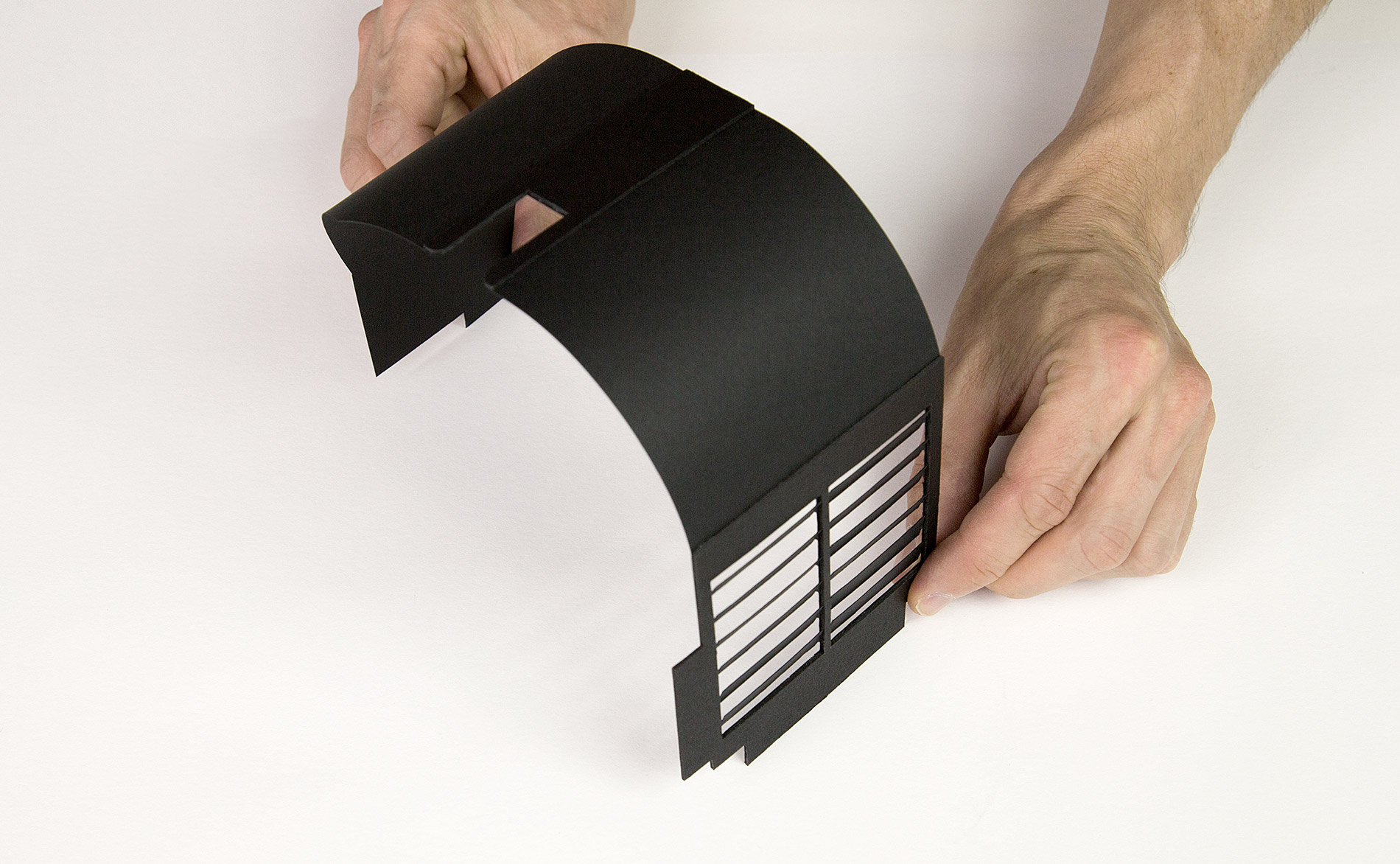

A complete front wheelhouse/fender liner.
  • ‣   A complete front wheelhouse/fender liner.

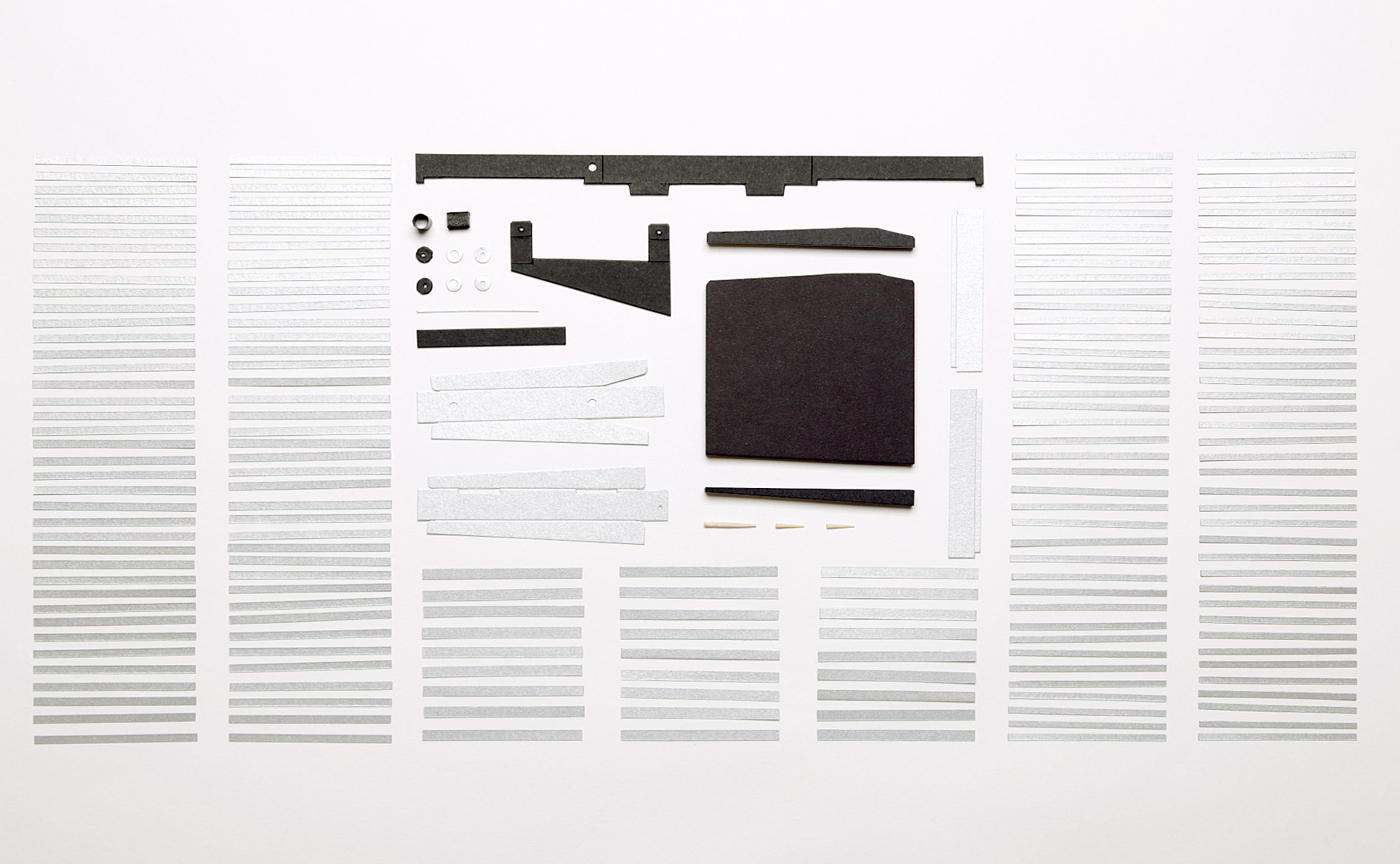

205 separate hand cut pieces make up one front radiator. And there’s two of them!
  • ‣   205 separate hand cut pieces make up one front radiator. And there’s two of them!

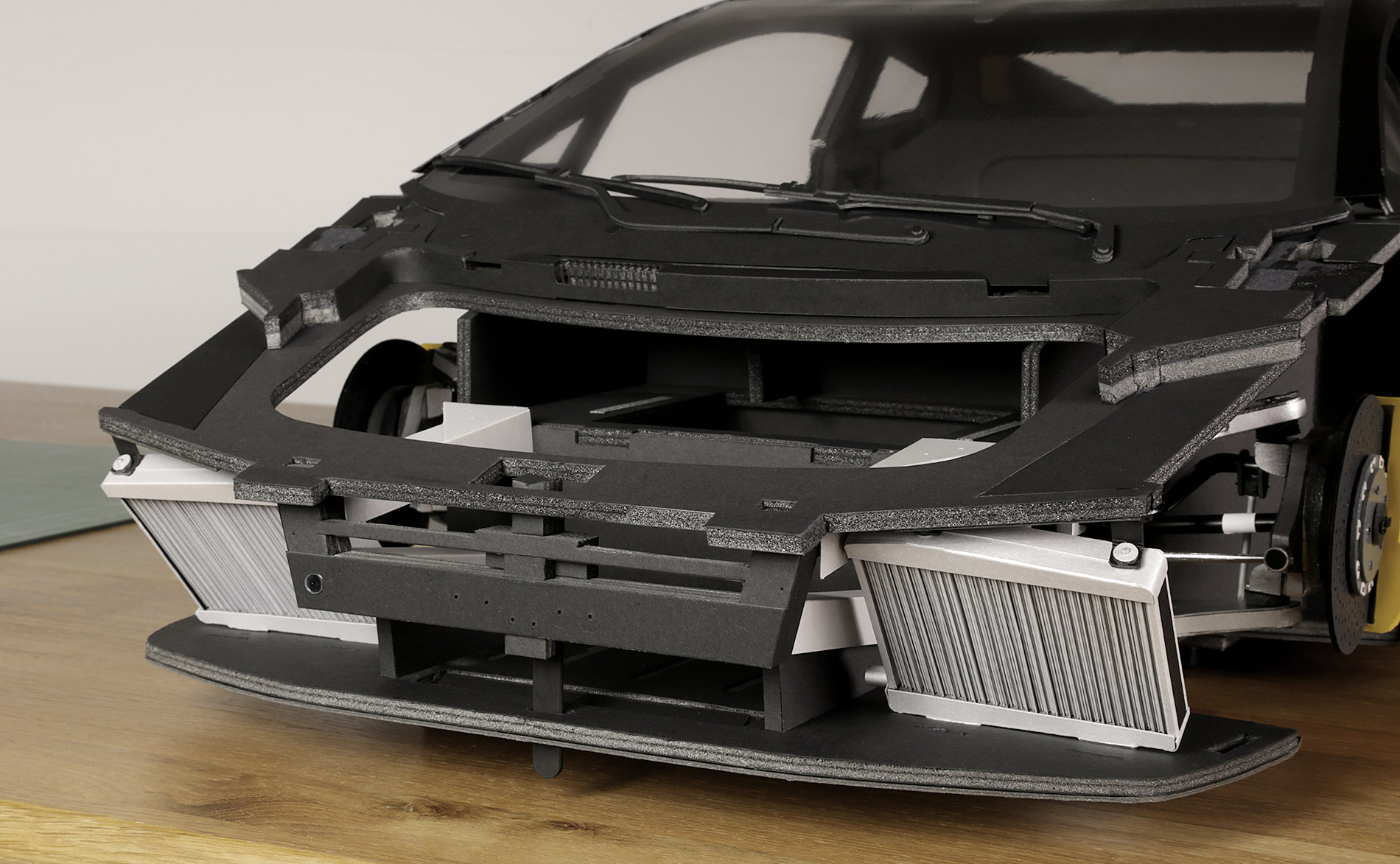

Both front radiators fitted to the model.
  • ‣   Both front radiators fitted to the model.

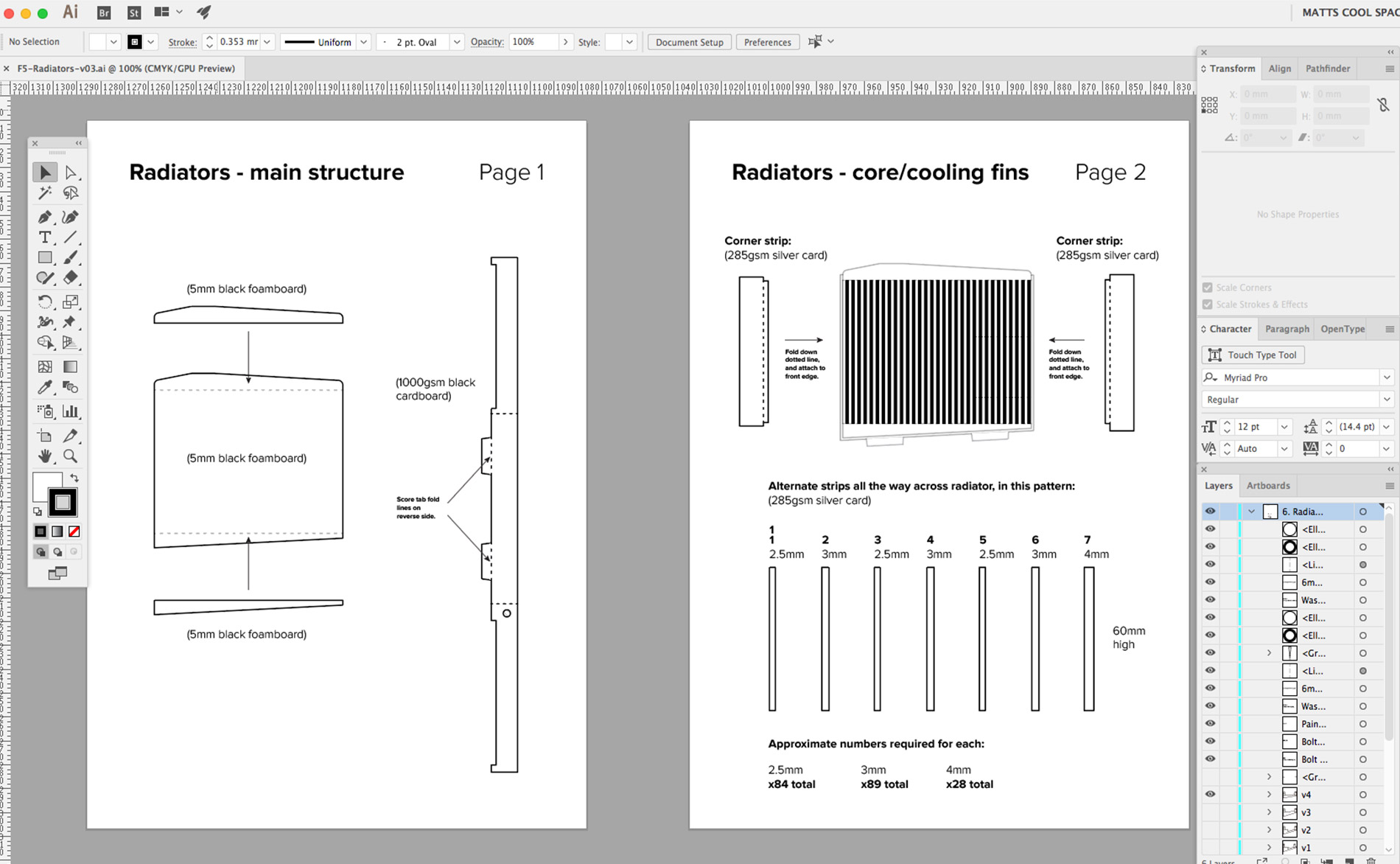

Plans for all the radiator parts created in Adobe Illustrator.
  • ‣   Plans for all the radiator parts created in Adobe Illustrator.

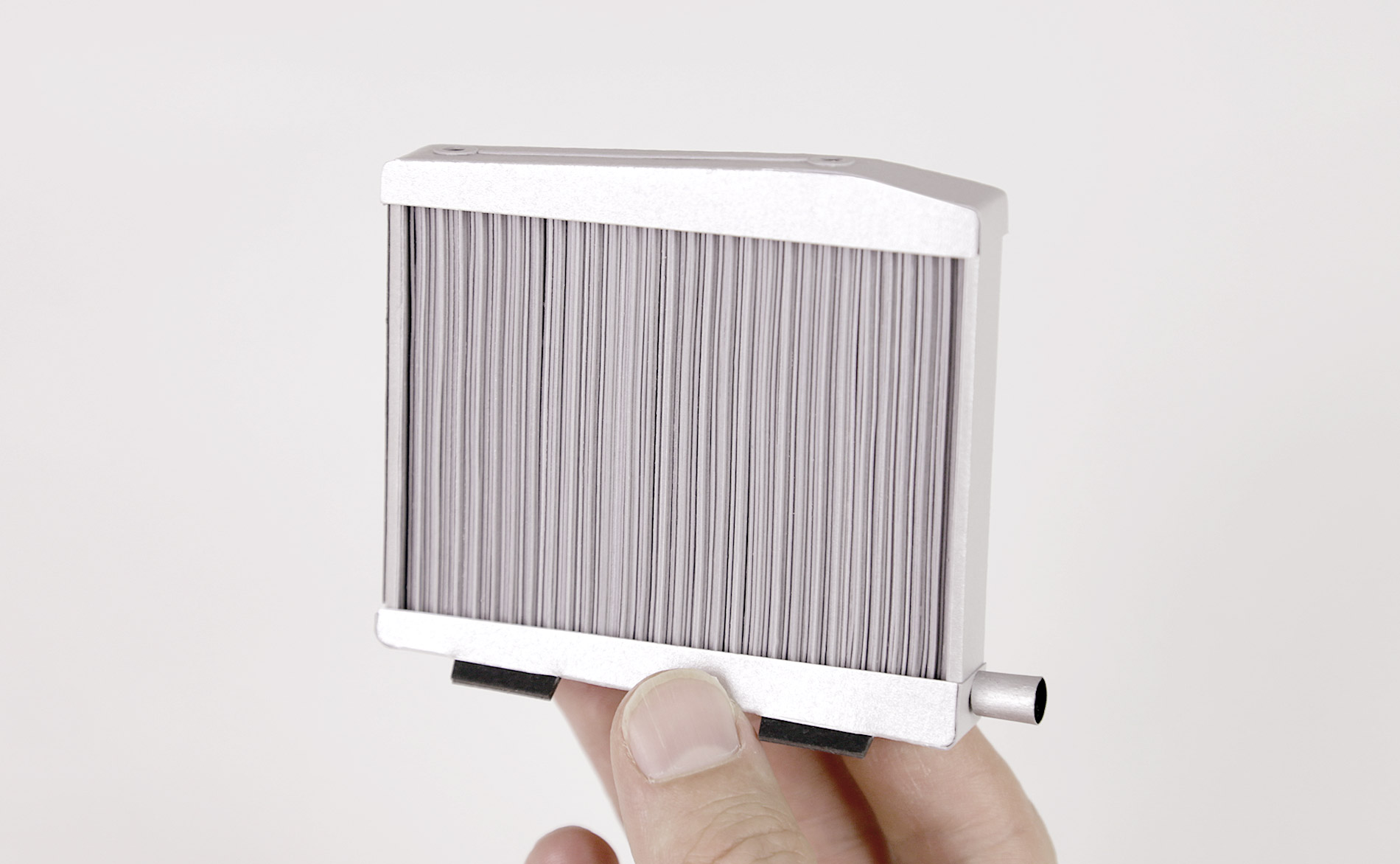

One of two front radiators. The cooling fins are made up of hundreds of separate hand cut pieces of paper, all glued together.
  • ‣   One of two front radiators. The cooling fins are made up of hundreds of separate hand cut pieces of paper, all glued together.

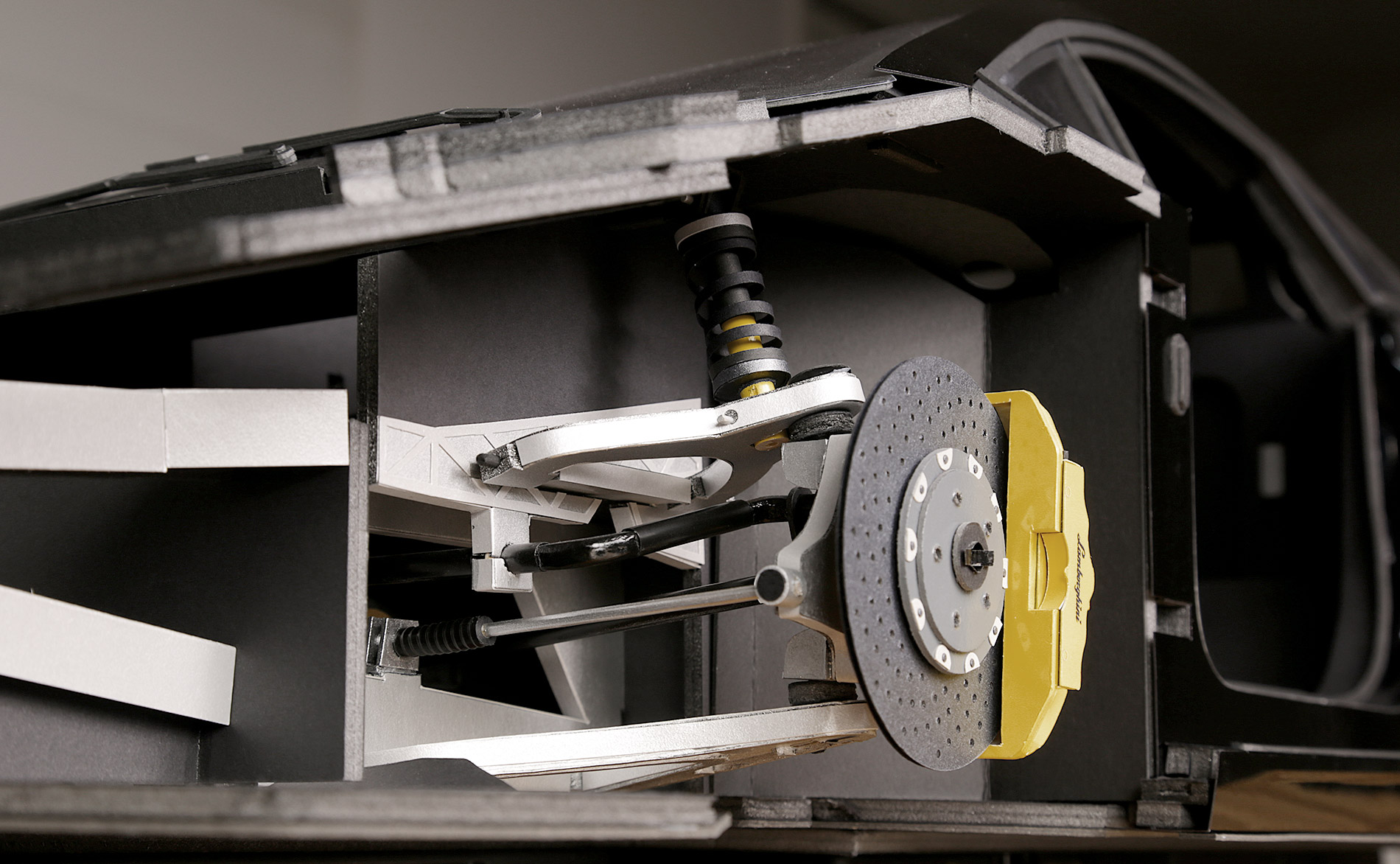

Front shock absorbers and steering rack fitted to the model.
  • ‣   Front shock absorbers and steering rack fitted to the model.

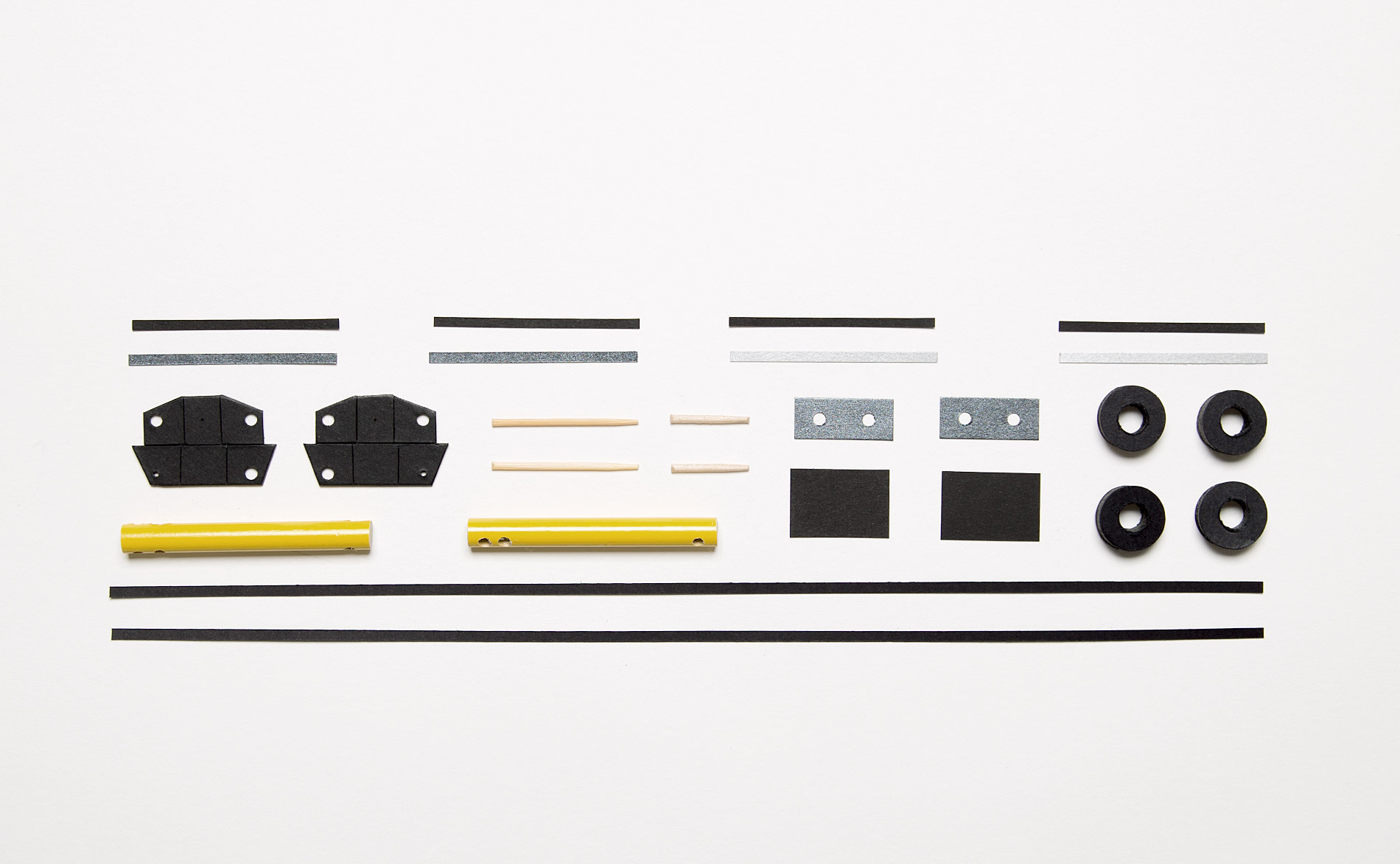

All parts to make both front shock absorbers.
  • ‣   All parts to make both front shock absorbers.

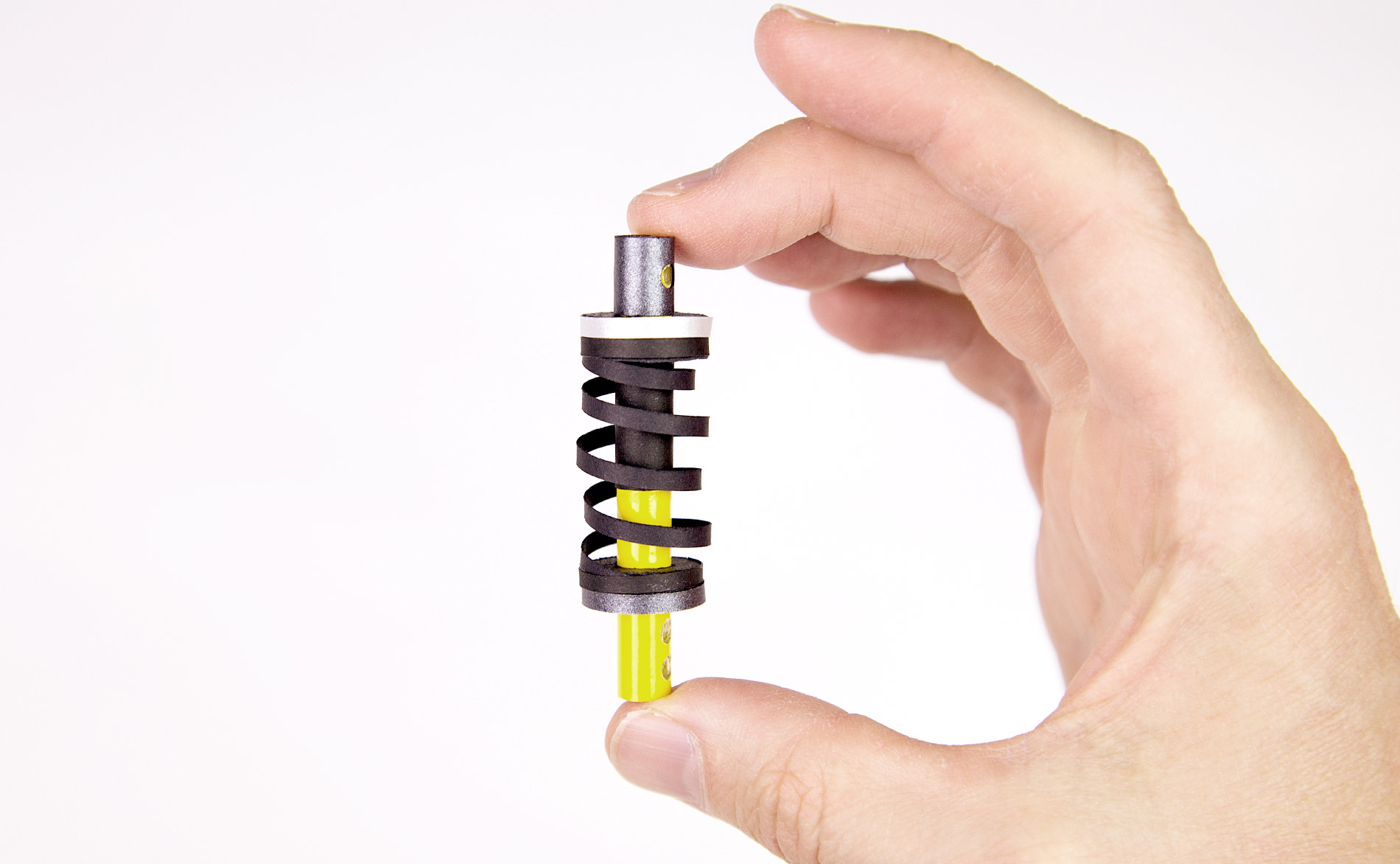

One of two front shock absorbers.
  • ‣   One of two front shock absorbers.
